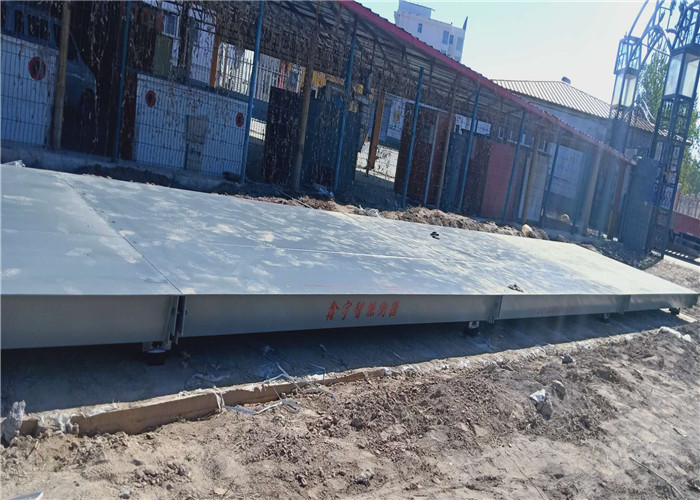

80Ton Pit or Pitless SCS Industrial Electronic Truck Weighbridge
The scale is equipped with the stable and reliable high precise weighing load cell,the intellectualized weighing indicator equiped with high accuracy,high resolution.plenty of weighing software and good working reliability weighing data can be printed out via standard output interface of indicator and also with a PC connected to an indicator.
Characteristics of Weighbridge:
* Combination type
* Simple platform module
* Suitable for analog and digital load cell
* Heavy duty structure
* High production efficiency
* Able to realize production in batch
* Convenient for container transportation
REFERENCE TABLE AS FOLLOW: (OIML approval indicator III stardand)
| subjects/rules | 10t | 20t | 30t | 40t | 50t | 60t | 80t | 100t | 120t | 150t |
| max weight (t) | 10 | 20 | 30 | 40 | 50 | 60 | 60 | 100 | 120 | 150 |
| value of a scale division (kg) | 5 | 5 /10 | 10 | 10/20 | 10/20 | 10/20 | 20 | 20 | 20/50 | 20 |
| panel depth (mm) | 6/8 | 8,9/10 | 8,9/10 | 9,10/12 | 10/12 | 10/12 | 10/12 | 10/12 | ≥12 | ≥12 |
The composition and feature of SCS Series Weighbridge :
It mainly consists of platform,load cells,weighing indicator,connecting assembly, junction box, spacing devices and signal cable.but can also matching printers, large screen monitors, computers, weighing management software ,stabilized voltage supply and other external equipment.
Technical data:
* Weighing Accuracy:OIML Class III
* Working voltage: ~220V(180V~245V)/50Hz
* Relative humidity: ≤95%RH
* Working temperature:-10°C~50°C(instrumentation).-30~70°C(transducer)
